Unbranded

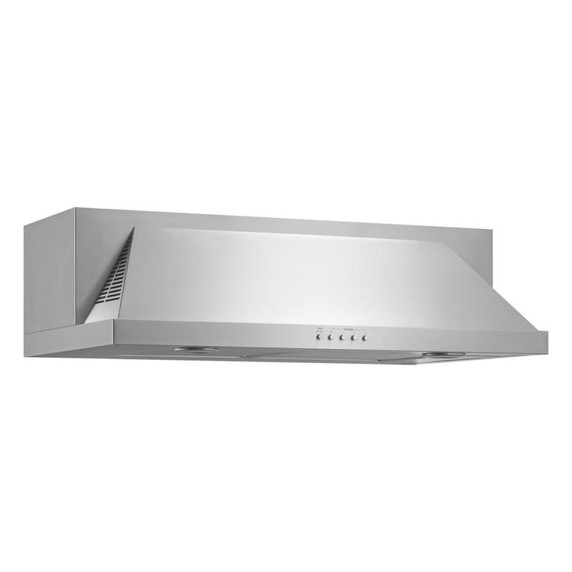

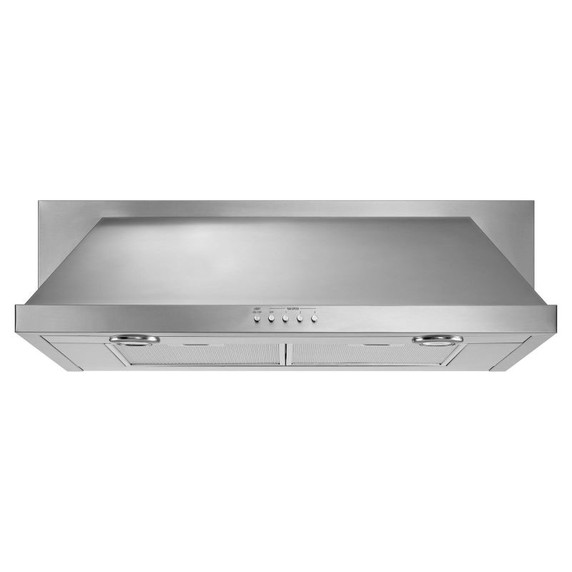

Convertible Under-Cabinet Hood, 30" UXT5530AAS
400 CFM Exhaust Rating400 CFM Exhaust Rating
Dual Halogen Worksurface LightingDual Halogen Worksurface Lighting
3 speed levels3 speed levels
High style, ceiling-mounted canopy hoodsHigh style, ceiling-mounted canopy hoods
Classic and Functional, Under Cabinet ExhaustClassic and Functional, Under Cabinet Exhaust
Electrical
Volts120
Hz60
Amps15
Certifications
ULYes
Description
Size In30
Specifications
Country Of OriginMexico
Optional AccessoriesW10272068, W10446914
Extended Service Plan ParentEW02IW2Y, EW02IW1Y, EW02IW4Y
Product To Product PairsYWFE745H0FH, WEG750H0HW, YWEEA25H0HZ, WEG745H0LZ, YWEE750H0HZ, WEGA25H0HZ, MEC8830HB, MEC8830HS, YWEE515S0LS, YWGE745C0FS, YWEE515S0LW, WCI55US0JB, YWFC315S0JS, YMET8800FZ, YWFE515S0JS, YWEE515S0LB, WEG750H0HV, YWEE745H0LZ, YWFC315S0JW, MGC7430DS, WCE97US0KB, YWEE515S0LV, YWFC150M0JW, YWFE745H0FS, WCE97US0KS, WEG750H0HZ, WCE77US0HB, WGG745S0FS, WCE55US0HS, WCE77US0HS, YWEE750H0HB, WEG515S0LV, WEG515S0LS, WCI55US0JS, WEG750H0HB, YWFC150M0JB, YWEE750H0HV, WCE55US0HB, MGT8800FZ, YWEE750H0HW
Ventilation System
Duct DirectionVertical
VentingExterior or Recirculating
Duct Outlet Size In3.25 W x 10 H
Duct TypeRectangular
Cfm Motor Class400
FiltersCharcoal Odor Removing Filter; Grease Filters
Sound Max Speed Sones8.2
Features
Task LightingYes
Task Light TypeHalogen
Btu Threshold60 K
Controls
Control TypeManual
Control LocationFront

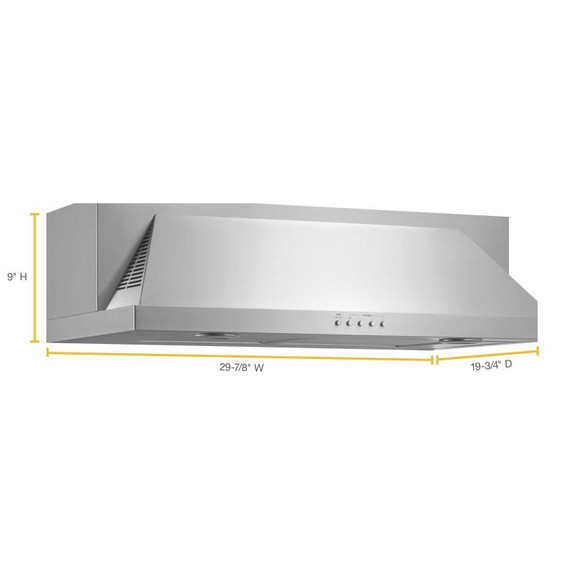

Carton Depth14.0"
Carton Height25.0"
Carton Width34.0"
Depth19.75"
Gross Weight37.7 lbs.
Height9.0"
Width29.88"
