Even-Heat™ True ConvectionProduces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.

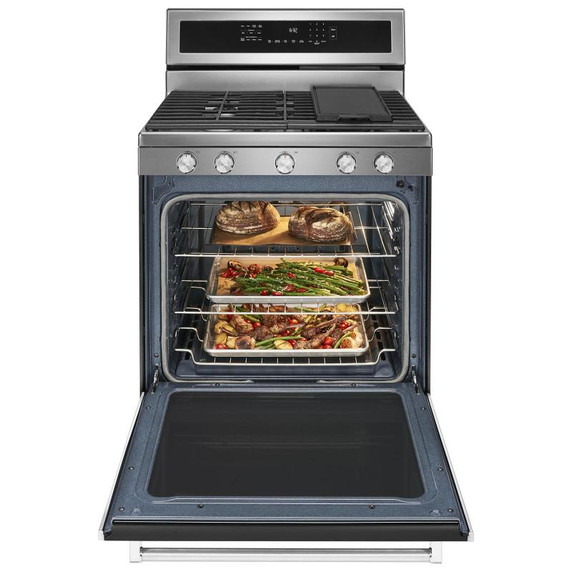

5.8 Cu Ft. Oven CapacityProvides a large cooking capacity that’s perfect for multiple dishes at once.

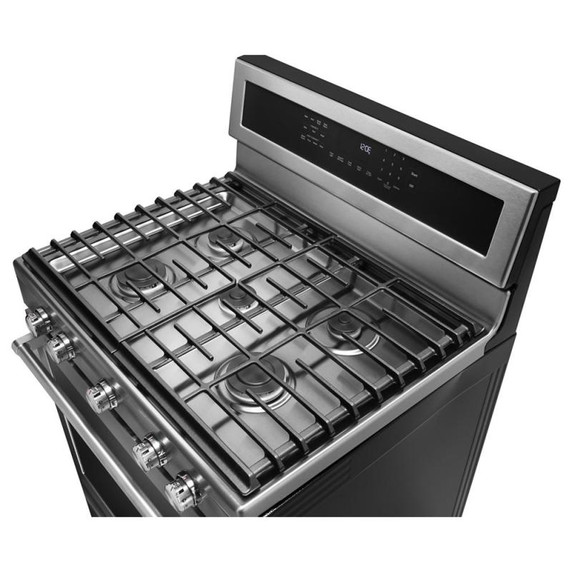

5 Burners (5k, 8k, 9.5k, 15k and 18k)Provides the perfect range of cooking power from 5,000 to 19,000 BTU, so you can go from a rolling boil to a delicate simmer.
EasyConvect™ Conversion SystemTakes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.

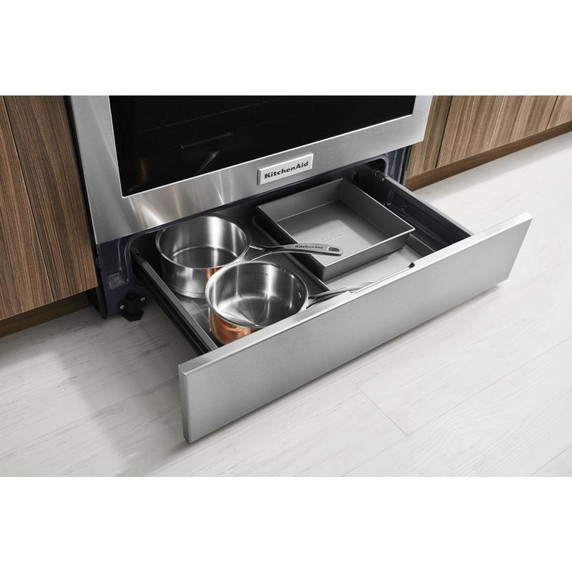

Storage drawerAdds additional storage space that’s perfect for pots, pans and baking sheets.
Aqualift®Cleans your oven in less than an hour without odours and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.
Knob TypeWeighted
Knob ColorStainless Steel
Electronic Display TypeDigital
Volts120
Hz60
Amps15
Power Cord IncludedYes
Fuel TypeGas
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Optional Accessories4396096RB
Cast Iron Vs PorecelainCast Iron Grates
Extended Service Plan ParentEW08IW1Y, EW08IW2Y, EW08IW4Y
Product To Product PairsKVUB400GSS, KVUB600DSS, KVWB400DSS, KVWB600DSS, KVWB600HBS, UVL5430JSS
GriddleYes
Hot Surface Indicator LightNo
Automatic Convection Conversion Temperature AdjustYes
Power Outage CompatibleNo
Heating Element On Indicator LightNo
Kad RangeEasyConvect™ Conversion; Even-Heat™ True Convection
ULYes

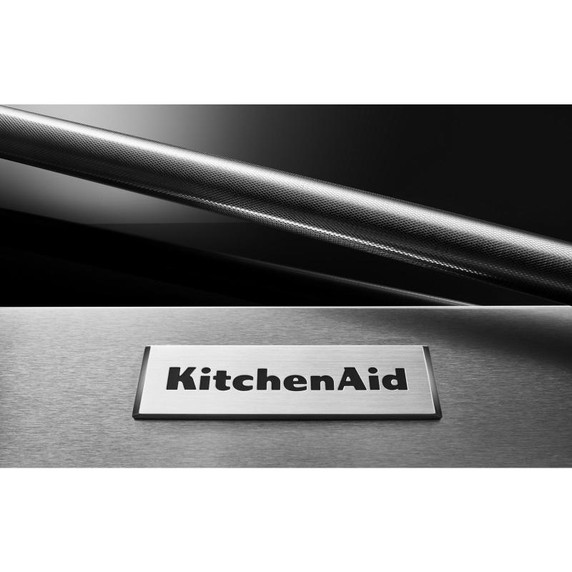

Handle MaterialMetal
Handle ColorStainless Steel
Handle TypeTowel Bar
Drawer TypeStorage Drawer
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Size In30
Range TypeFreestanding
Broiler LocationTop of Oven
Convection FunctionsBake; Broil; Roast
Hidden Bake ElementYes
Interior ColorGrey
Oven Cooking SystemConvection
Number Of Oven Lights1
Oven Light TypeIncandescent
Broiler Element Power11000BTU
Convection Element TypeFan

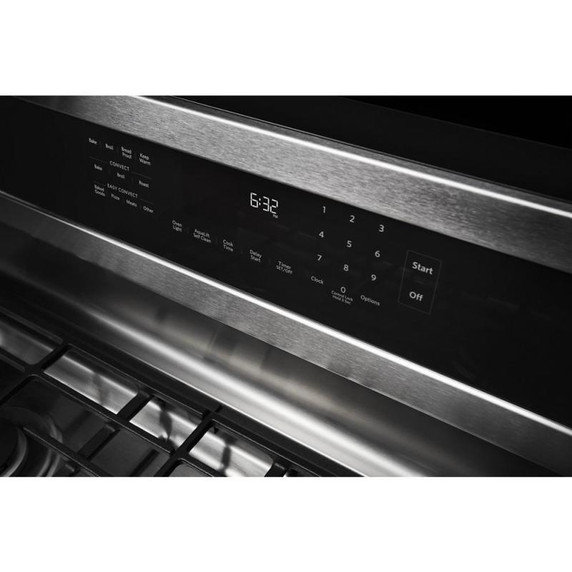

Oven Control TypeElectronic Touch

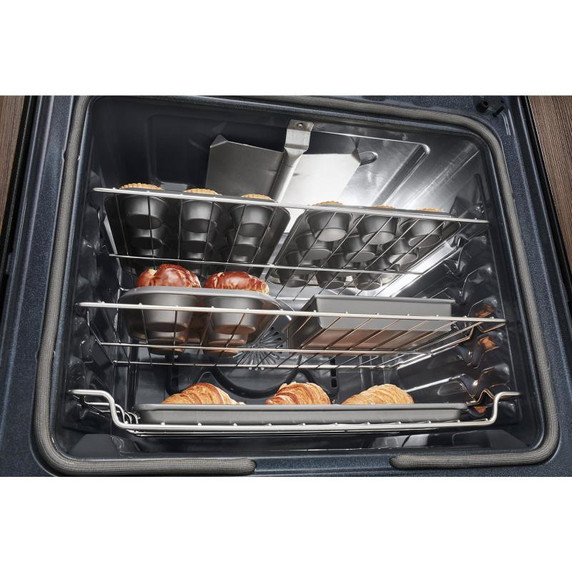

Number Of Oven Racks3
Oven Control LocationRear Control
Bake Element Power18000BTU
Convection Element Power Watts900
Number Of Rack Guides7
Oven Rack Type1 Max Capacity, 2 Standard
Oven Interior Depth In Inches20.63
Oven Interior Width In Inches24.13
Oven Cleaning TypeAquaLift® Self-Clean

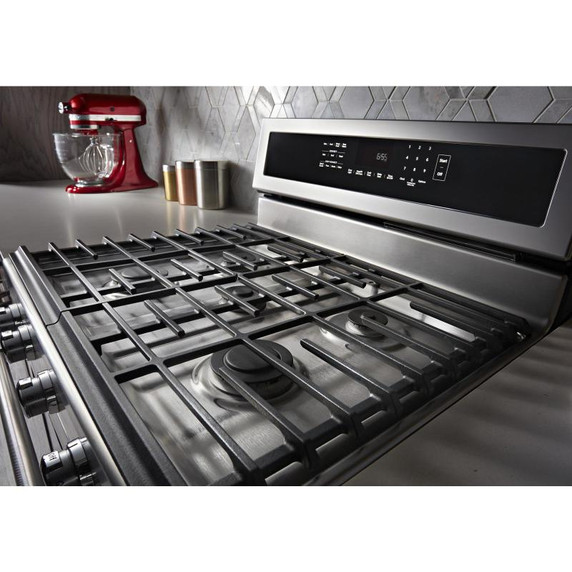

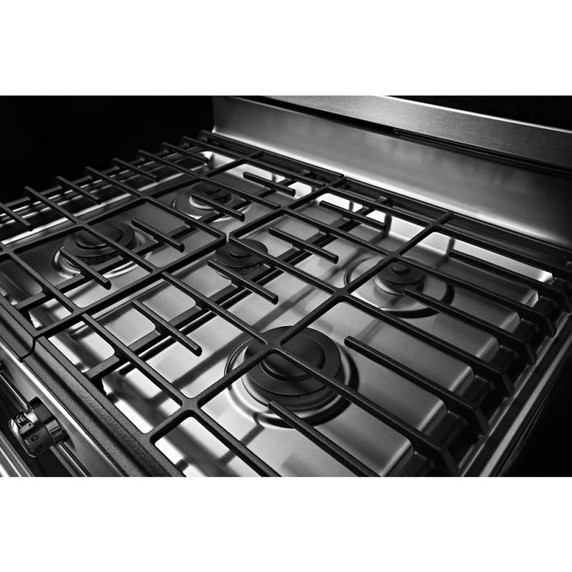

Cooktop Element StyleSealed Burners
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Left Front Element Burner TypeSealed Burner
Number Of Cooking Element Burners5
Right Rear Element Burner TypeSealed Burner
Center Rear Element Burner TypeSealed Burner
Left Rear Element Burner TypeSealed Burner
Right Front Element Burner TypeSealed Burner
Right Front Element Burner Power15000BTU
Auto Re IgnitionNo
Number Of Grates2
Left Front Element Burner Power18000BTU
Right Rear Element Burner Power5000BTU
Left Rear Element Burner Power9500BTU
Center Rear Element Burner Power8000BTU
Cooktop Surface ColorStainless Steel
Grate DetailsCast Iron Grates; Continuous; Dishwasher Safe; Matte Finish
Ignition TypeÉlectroniques
Carton Depth29.0"
Carton Height48.75"
Carton Width32.0"

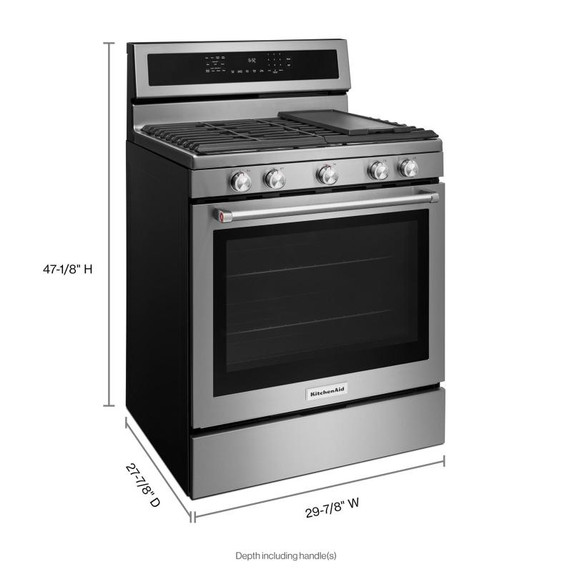

Depth Closed Excluding Handles25.44"
Depth Closed Including Handles27.88"
Depth With Door Open 90 Degree47.88"
Gross Weight209.0 lbs.
Height47.13"
Width29.88"
Capacity FT3 (cubic feet)5.8
Net Weight204 lbs.
