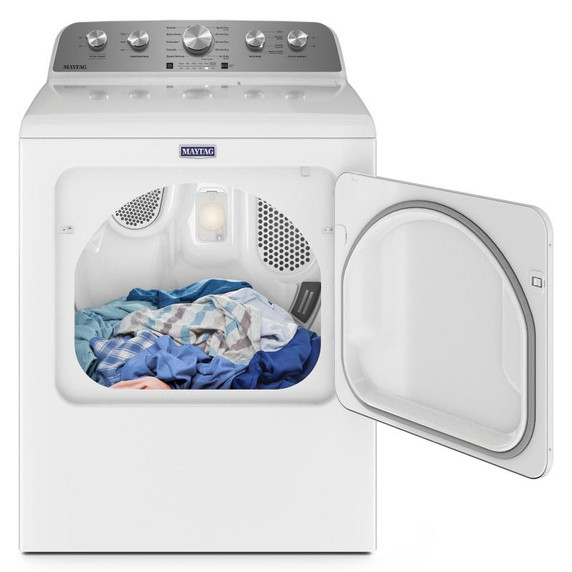

Maytag® Top Load Electric Dryer with Steam-Enhanced Cycles - 7.0 cu. ft. YMED5430MW
Maytag

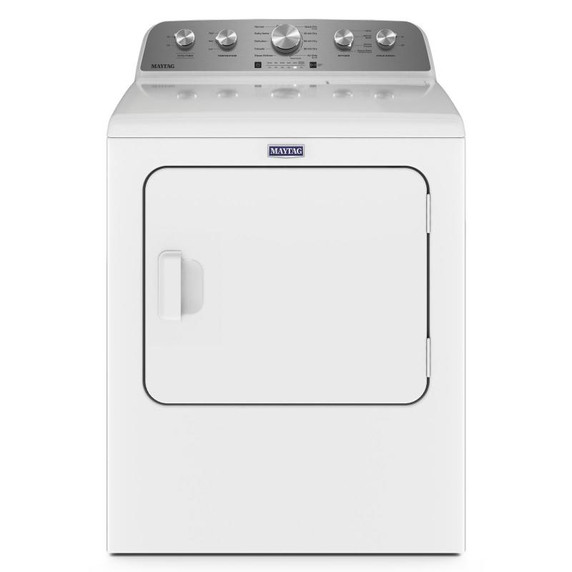

Maytag® Top Load Electric Dryer with Steam-Enhanced Cycles - 7.0 cu. ft. YMED5430MW

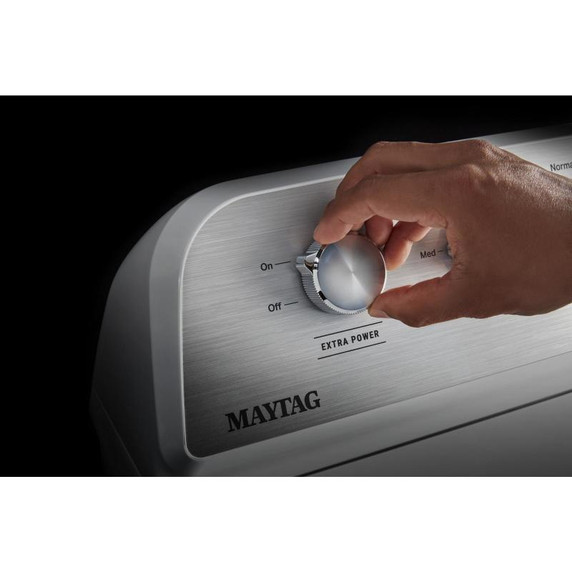

Extra PowerExtra Power boosts drying power to get thick fabrics drier the first time.*
*Results may vary based on load size and type.

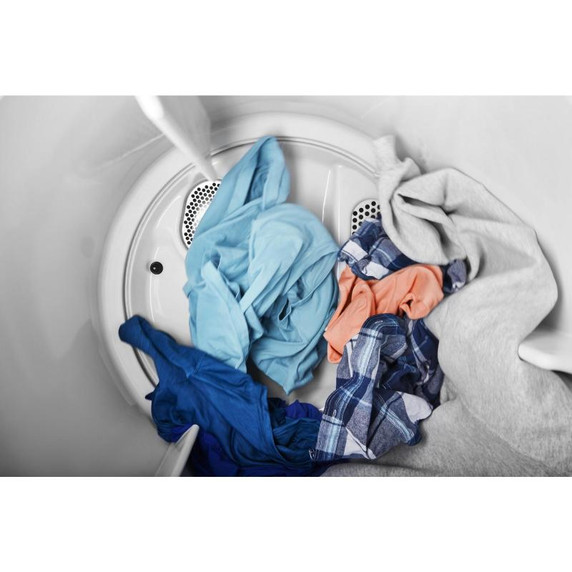

Steam-enhanced dryerSteam-enhanced dryers harness the power of steam to help prevent wrinkles and refresh clothes—even on deserted loads.
Moisture SensingTwo sensors closely monitor inside moisture and air temperatures to deliver the right results without the decision making. When loads are evenly dry and air reaches ideal temperatures, the cycle stops, helping prevent over- and under-drying.
Wrinkle Prevent OptionDon’t worry about forgetting to take laundry out of the dryer. The Wrinkle Prevent option tumbles clothes for up to 150 minutes after the cycle ends to help prevent wrinkles from forming.
Quick Dry CycleDry a small load quickly or customize settings to add more time. Plus, you can choose to remember your settings for your next load of laundry.
7.0 cu. ft. capacityDries large loads with spacious 7.0 cu. ft. capacity

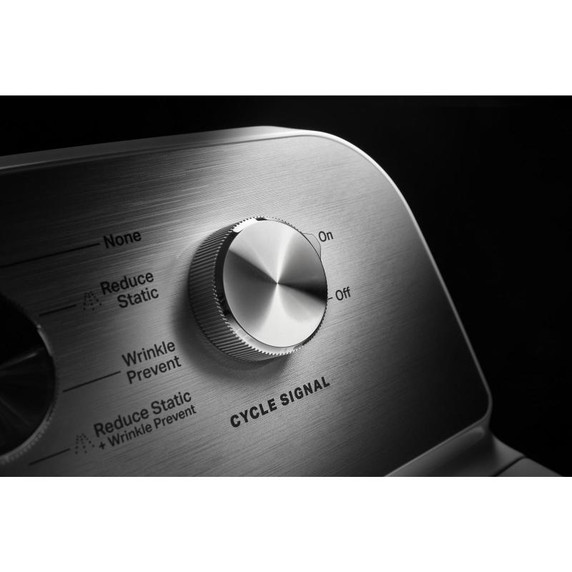

End of cycle signalAvoid forgotten laundry with the end of cycle signal so finished loads aren't left behind.
Steam Refresh cycleBuilt to reduce wrinkles, the Steam Refresh cycle quickly revives clothes without the need for a full wash cycle.
Reduce Static OptionThe Reduce Static option cuts down on cling with the addition of a fine mist of water as clothes tumble at the end of the cycle.
10-year limited parts warranty* on the drive motor and drum
*See product warranty for details.We don’t just tell you a Maytag® dryer will get your clothes dry for years: we confidently back our dryers with a 10-year limited parts warranty* on the drive motor and drum.
*See product warranty for details.
American PrideWe take pride in building strong, reliable appliances for your home. These dryers are proudly assembled by hard-working employees in Marion, Ohio.
An American company for over 100 yearsWhirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.

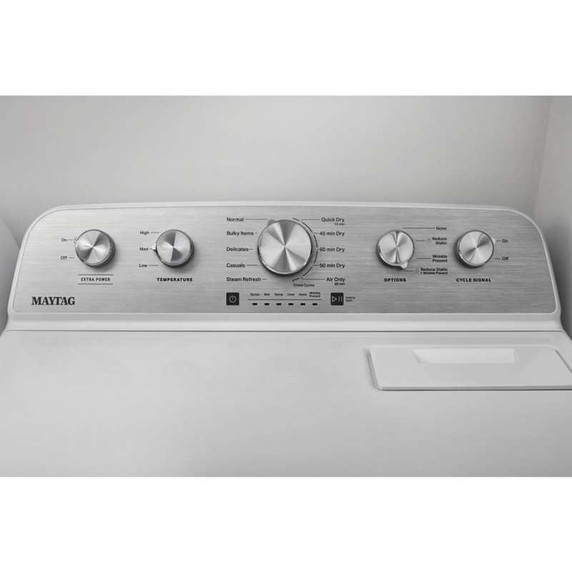

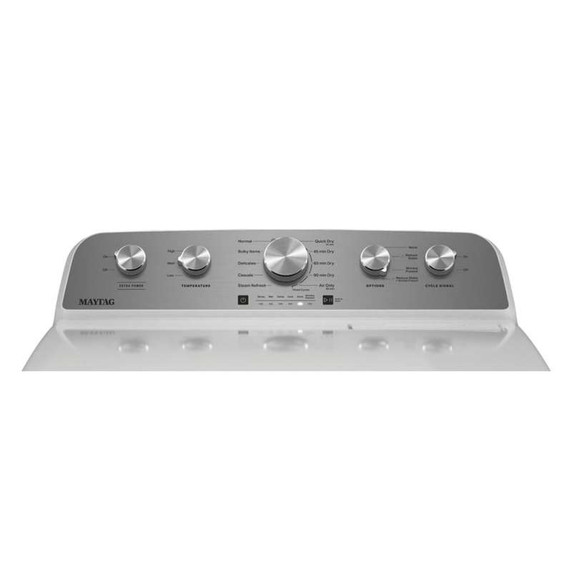

Controls
Control LocationRear Console
End Of Cycle SignalYes
Control TypeKnob & Buttons
Feedback Status IndicatorsCool; Damp; Done; Sensing; Wet; Wrinkle Prevent
Electrical
Hz60
Volts240
Amps30
Configuration and Overview
Fuel TypeElectric
Compatibility
Works With
Cycles and Options
Cycle Time RemainingNo
Temperature Settings
Number Of Temperatures4
Temperature SelectionAir Only; High; Low; Medium
Installation Considerations
Long VentNo
Maximum Vent Length Ft64
Venting DirectionRear Only
VentlessN/A
Specifications
Country Of OriginUSA
Top Load MatchingYes
Front Load MatchingNo
Required AccessoriesW10044609A, W10623830
Optional Accessories3406839
Extended Service Plan ParentEW03IW4Y, EW03IW2Y, EW03IW1Y

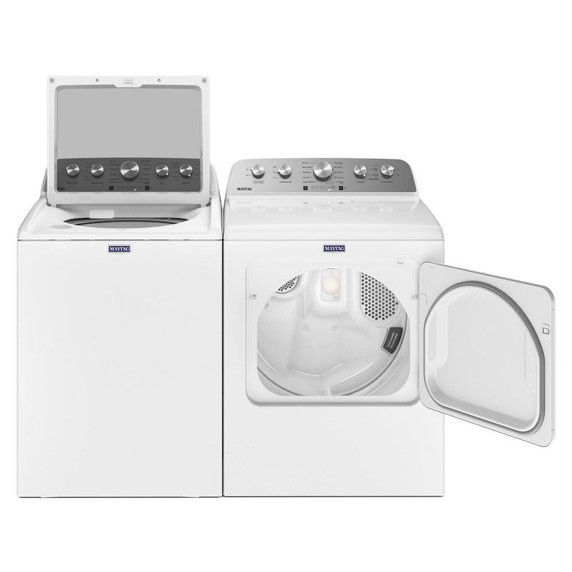

Product To Product PairsMGD5430MW, MVW5430MW
Features
LP ConvertibleNo
Sound PackageNo
Automatic Dry ControlYes
Moisture SensorYes
Pedestal OptionsN/A
StackableNo
Lint Filter IndicatorNo
Certifications
ULYes
Energy Star QualifiedNo
Exterior
Door StyleSide Swing
Reversible DoorYes
WindowNo
Details
Hoses IncludedNo
Drum MaterialPowder Coat
Drying RackNo

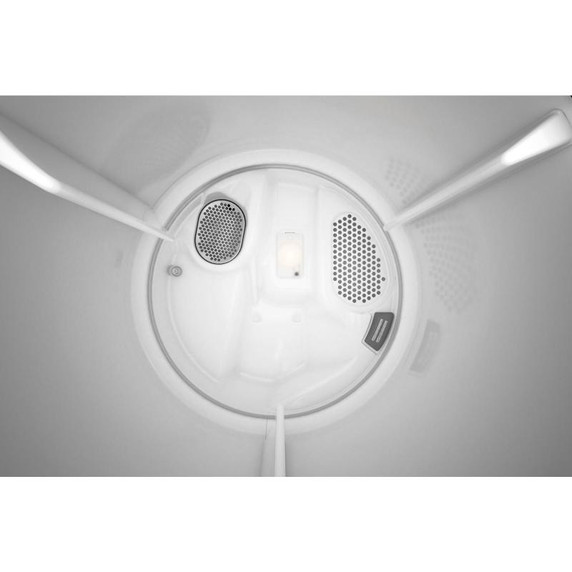

Quad BafflesYes
Lint Screen LocationTop
Cycles
Number Of Dryer Cycles10
Drying Cycles Selections45 min Dry; 60 min Dry; 90 min Dry; Air Only (90 min); Bulky Items; Casual; Delicates; Normal; Steam Refresh
Options
Number Of Dryer Options4
Dryer Option SelectionsExtra Power; Temperature; Wrinkle Prevent; Wrinkle Prevent w/Steam
Carton Depth30.0"
Carton Height44.0"
Carton Width31.0"
Depth With Door Open 90 Degree51.0"
Depth28.25"
Gross Weight125.0 lbs.
Height43.0"
Maximum Height43.0"
Minimum Height39.0"
Width29.0"
Capacity IEC CAN (cubic feet)7
