Whirlpool® 24-Inch Small Space Induction Cooktop WCI55US4JB

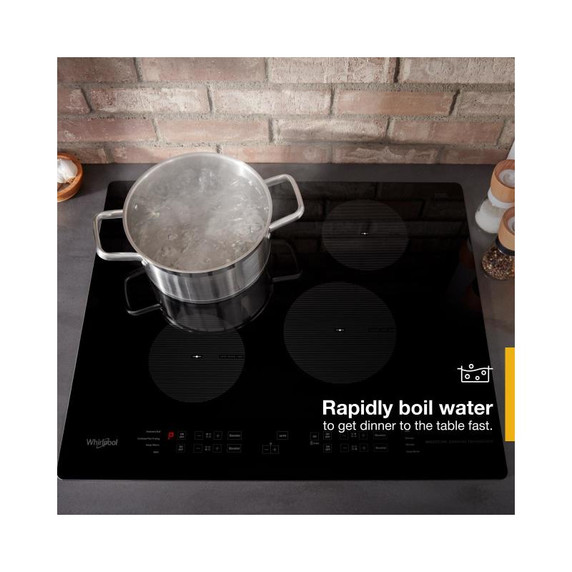

Fast BoilBoil 12 cups of water on average 25% faster on Booster to help you get dinner to the table in less time.
Quick Clean UpInduction technology ensures the cooktop around the elements are cool, helping stop baked-on messes from even occurring. The cooktop's touch-activated controls are as easy to clean as they are to use.

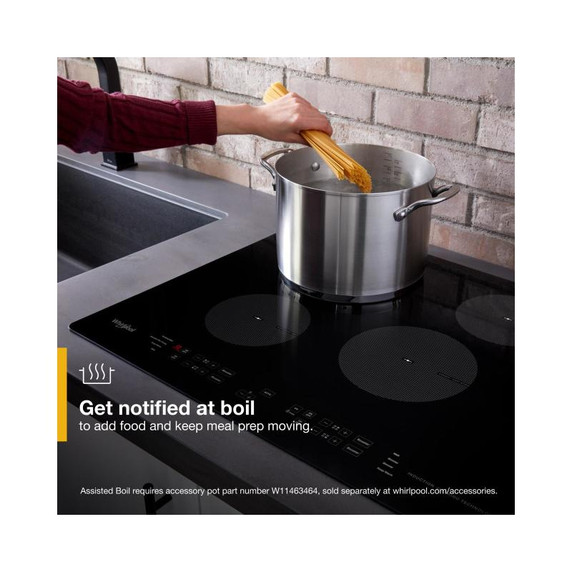

Assisted BoilThis optional assisted cooking function notifies you with a helpful tone and flashing light when boiling water reaches the right temperature to add food—so you can keep dinner prep moving and get dinner to the table fast. Requires an accessory pot, part number W11463464, sold separately.

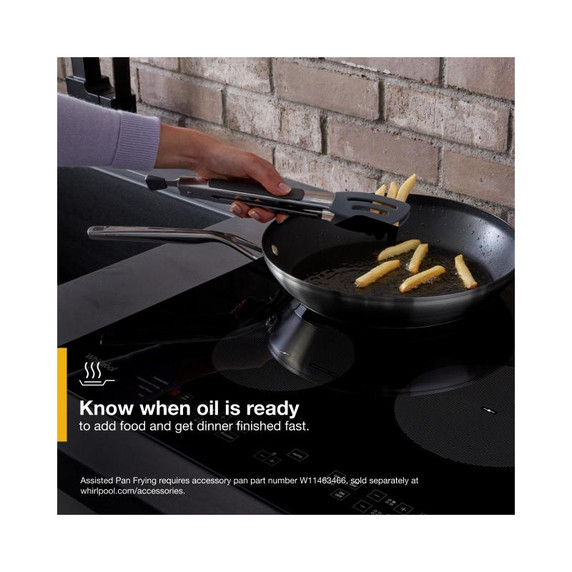

Assisted Pan FryingThis optional assisted cooking function notifies you with a helpful tone and flashing light when oil reaches the right temperature to add food—so you can keep dinner prep moving and get dinner to the table fast. Requires an accessory pan, part number W11463466, sold separately.
Keep WarmLow heat keeps food ready to serve when other dishes aren’t quite done, saving you time spent heating up food that’s gotten cold.
Compatible CutoutInstall your new induction cooktop into the same size cutout as our electric cooktops, making the switch nearly effortless.
Control Lock ModeDisable the control panel to avoid unintended use and make cleanup easy.
Small Space SolutionUse multiple pans on a cooktop to save valuable counter space.
MeltPrevent burning delicate foods like chocolate or butter with a Melt setting that lets you focus on other tasks.
SimmerMaintain the right temperature for simmering soups and stews so you can let dishes cook while taking on the next step in meal prep.
Optional Flush InstallationChoose Optional Flush Installation for a flush fit and seamless look. With flush installation the cooktop is placed into the countertop, rather than on top of the countertop for a more built-in appearance.
Pan DetectionEasily see which element is activated with Pan Detection. A flashing symbol alerts you when a pan is removed or replaced on an active element.
30 Amp InstallationProperly install with a 30 amp hookup.
Kitchen TimerKeep track of cook times with an easy-to-clean Kitchen Timer that’s integrated into the controls.
Wall Oven CompatibleInstall this cooktop on a countertop above a Whirlpool® Wall Oven or on its own for more flexibility.aInstall this cooktop on a countertop above a Whirlpool® Wall Oven or on its own for more flexibility.
ADA compliantThis cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Specifications
Country Of OriginUSA
Optional AccessoriesW11463464, W11463466
Product To Product PairsWVU37UC4FS
Extended Service Plan Parent
Electrical
Hz60
Power Cord IncludedYes
Volts240
Amps30
208v CompatibleYes
Watts7
Certifications
ULYes
ADA CompliantYes
Features
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Downdraft VentNo
Installs Over Built In OvenYes
Automatic Pan DetectionYes
Automatic Pan Size AdjustmentYes
Digital DisplayYes
Power BoostYes
Configuration and Overview
Fuel TypeElectric
Description
Size In24
Cooktop TypeTraditional
Combinations With OvenWOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7
Cooktop Details
Cooktop ConfigurationAll Burners
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Cooktop Element StyleInduction
Left Front Element Burner TypeStandard
Right Front Element Burner TypeStandard
Left Rear Element Burner Size8in.
Left Front Element Burner Size6in.
Left Front Element Burner Power1200W/1600WBoost
Left Rear Element Burner Power2100W/3000WBoost
Right Front Element Burner Power1800W/2100WBoost
Right Front Element Burner Size7in.
Right Rear Element Burner Power1200W/1600WBoost
Controls
Control TypeManual
Control LocationFront

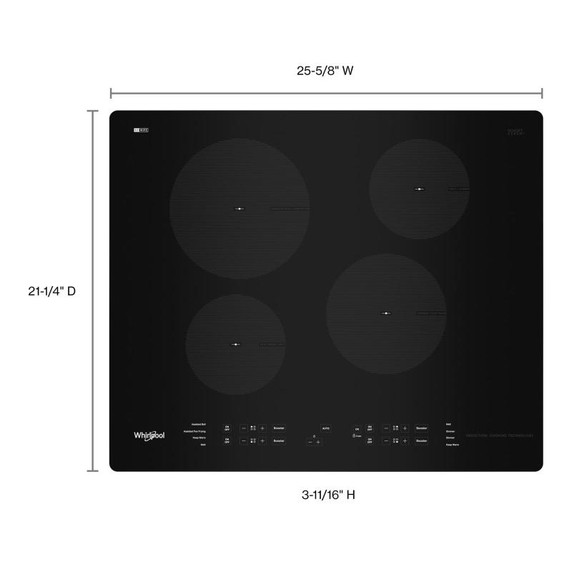

Depth21.25"
Height3.69"
Maximum Height4.0"
Net Weight32.0 lbs.
Width25.63"
Carton Depth Inch25.28
Carton Height Inch7.64
Carton Width Inch28.98
