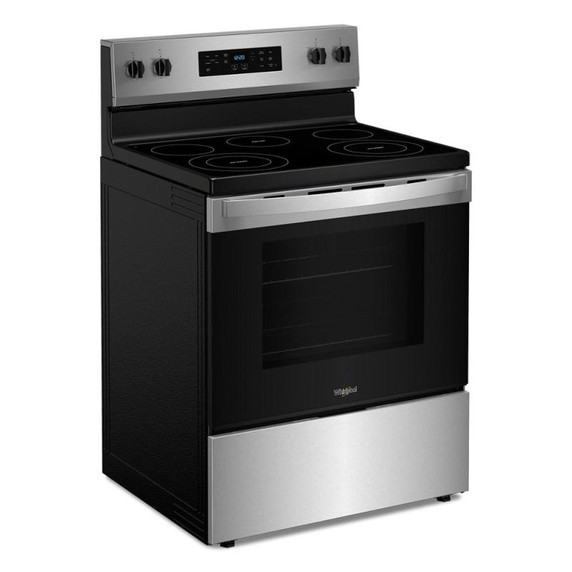

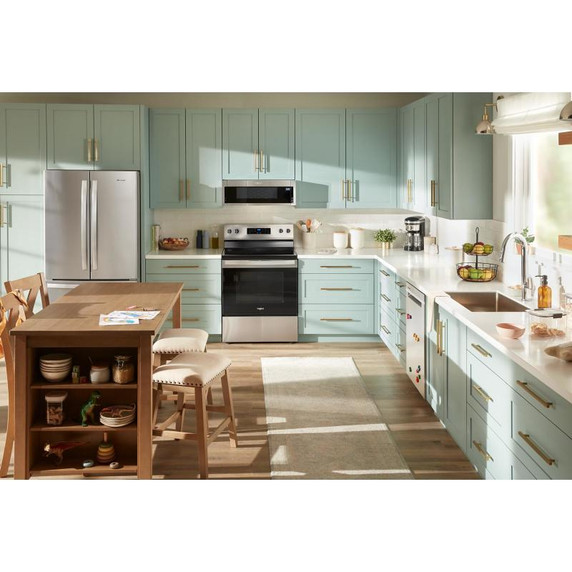

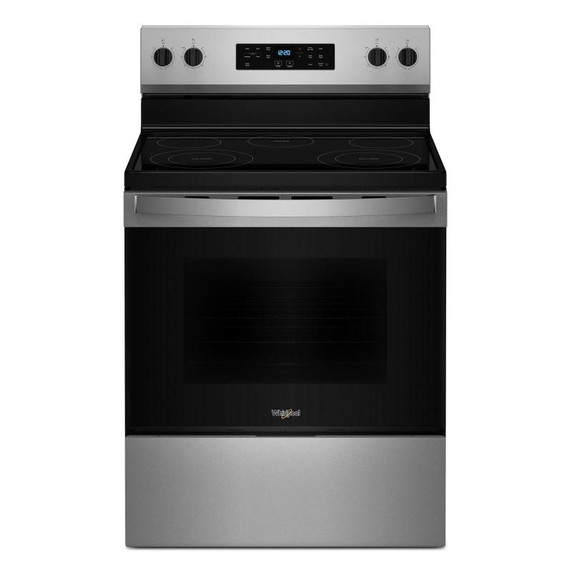

Whirlpool® 30-inch Electric Range with Steam Clean YWFES3330RZ
Whirlpool, Maytag Autumn Kitchen Suite Savings Event, September 26 - October 30, 2024. Save $150 when you purchase 2 qualifying Whirlpool® or Maytag® major kitchen appliances. Save $300 on 3 or more!

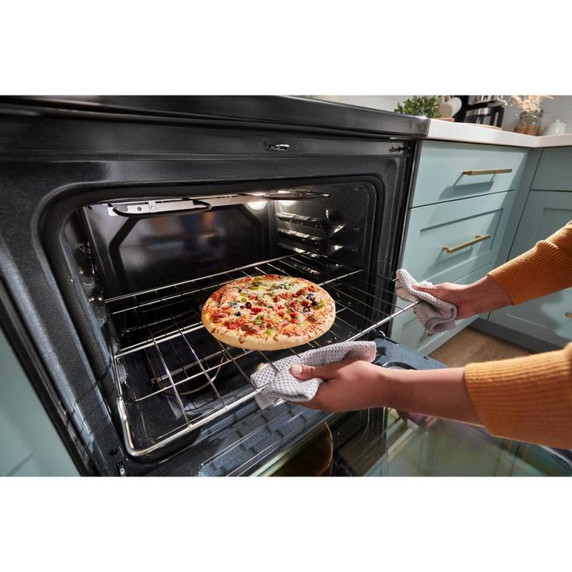

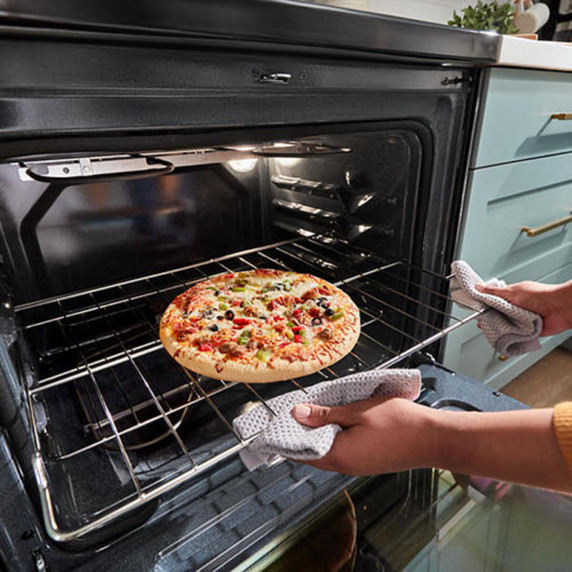

No Preheat ModeTake preheating off your plate with No Preheat Mode. Simply place your food in the oven and start baking. The oven will adjust the cook time for frozen pizzas and more.
BakeSpend less time monitoring with a built-in temperature sensor to help bake evenly. This sensor manages oven temperature for delicious results every time.

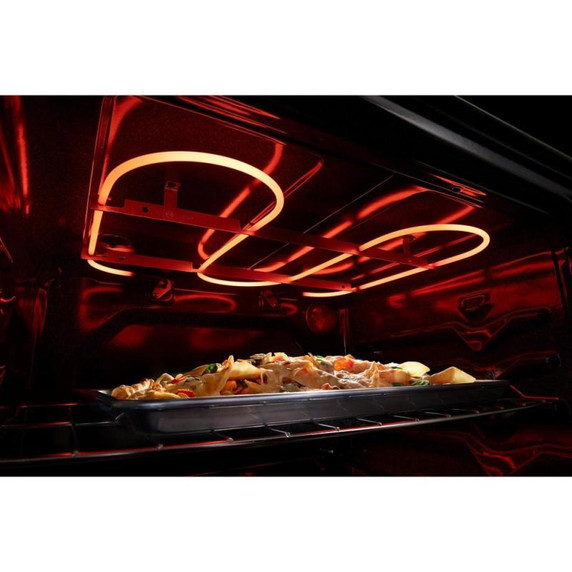

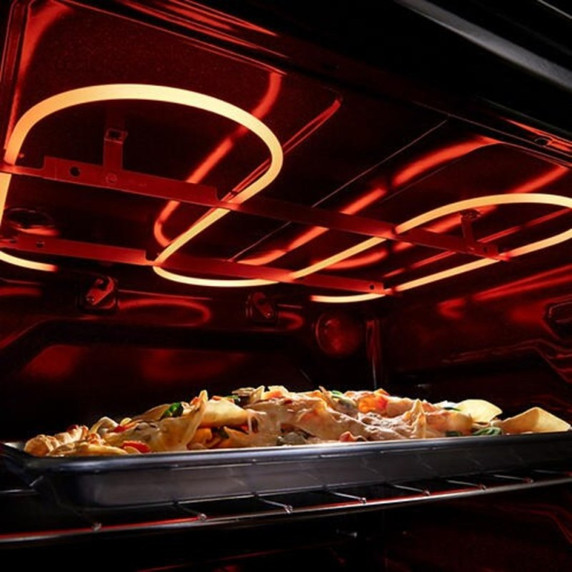

BroilRedefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.

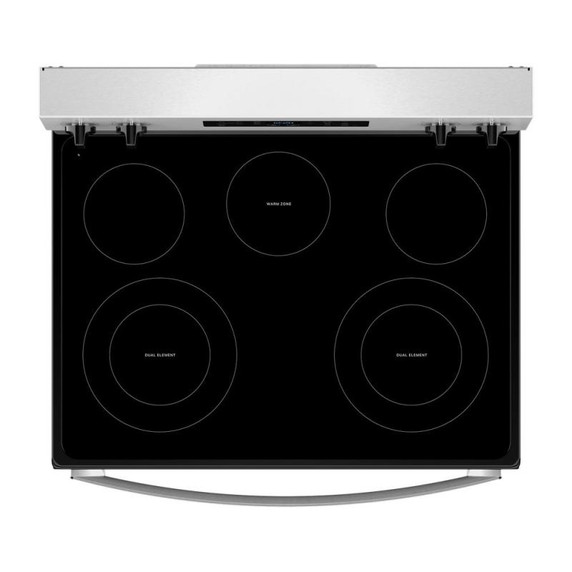

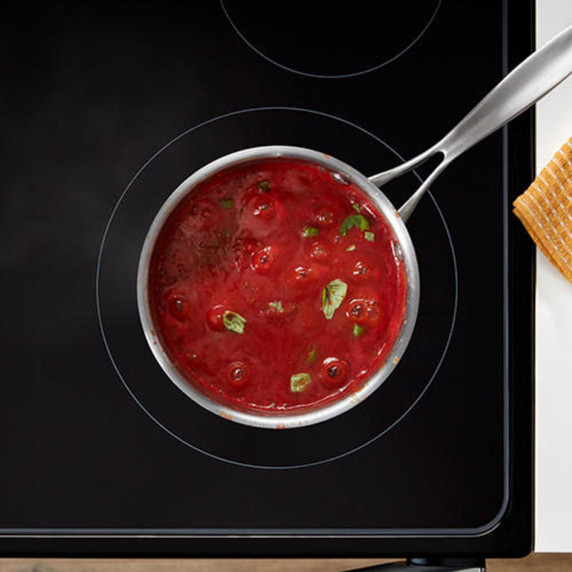

Two FlexHeat™ Dual Radiant ElementsCustomize your element size for large or small cookware and boil 40% faster* with two FlexHeat™ Dual Radiant Elements, designed with a 6"" inner ring and 9"" expandable outer ring. *When comparing the 9"" element to the 6"" element on the same unit.
Flexible CooktopEasily cook multiple dishes at once with a Flexible Cooktop that offers a range of element sizes and power levels.
Keep Warm SettingUse the Keep Warm Setting in the oven to help your dishes stay warm until your family is ready to dig in.
Warm ZoneUse the designated Warm Zone to keep your food warm on the cooktop as you prep the rest of your meal.

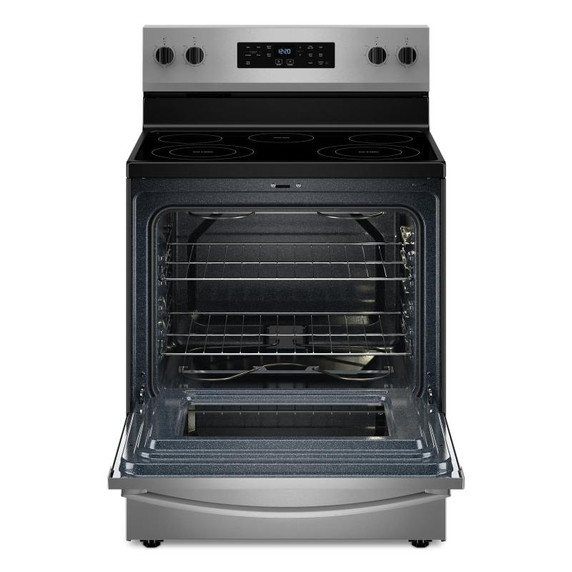

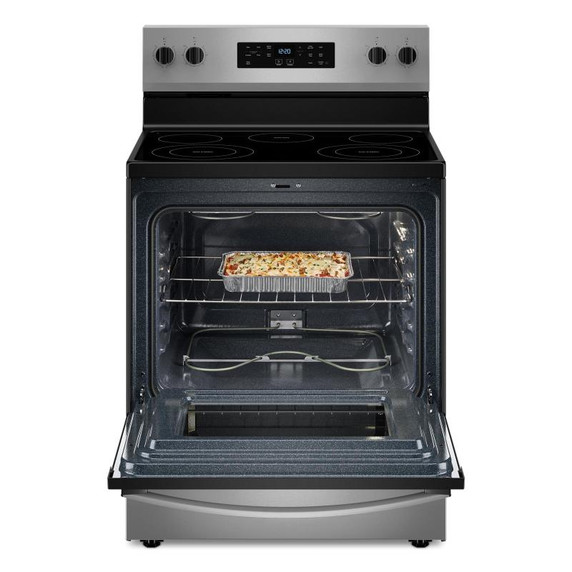

5.3 Cu. Ft. CapacityCook for a crowd and fit large dishes, like a full-sized turkey, into the spacious 5.3 Cu. Ft. Capacity.
Steam CleanUse the Steam Clean Option to quickly and easily loosen light messes inside the oven without harsh chemicals or cleaners—just add water, run the cycle, and wipe away.
Storage DrawerEasily store kitchen items, from baking sheets to cooking pans, in the Storage Drawer.
Fingerprint ResistantAvailable in a stainless finish that’s easy to clean and resists fingerprints and smudges.
Specifications
Country Of OriginUSA
Dishwasher SafeNo
Extended Service Plan ParentEW03IW1Y, EW03IW2Y, EW03IW4Y
Product To Product PairsUXT5530AAS, WVW73UC0LS, WVU17UC0JW, WVW53UC0LS, WVW57UC0FS, UVL5430JSS, WVU57UC0FS, WVW53UC0HV, UXT4130ADS, UXT5230BDS, WVU37UC0FS, WVU17UC0JS, WVW51UC0LS
Electrical
Hz60
Power Cord IncludedYes
Amps40
Volts208
Watts7
Certifications
ULYes
ADA CompliantNo
CULYes
Energy Rating Kwh Year523
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Door RemovableYes
Drawer TypeStorage Drawer
Handle TypeReach-Through Handle
Cooktop Details
Left Front Element Burner TypeDual
Right Front Element Burner TypeDual
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop Element StyleCeran
Left Front Element Burner Power3000W
Left Front Element Burner Size9in./6in.
Left Rear Element Burner Power1200W
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Right Front Element Burner Power3000W
Right Front Element Burner Size9in./6in.
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Center Rear Element Burner Power100W
Center Rear Element Burner TypeWarming
Cooktop Control LocationBackguard
Features
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
Automatic Convection Conversion Temperature AdjustNo
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Details
Oven Light Switch LocationOven Control
Rack Guide TypeMolded
Interior ColorGrey
Number Of Oven Racks2
Oven Cleaning TypeSteam Clean
Oven Cooking SystemThermal
Number Of Rack Guides5
Bake Element Power2400W
Broiler Element Power3400W
Cooktop Surface MaterialGlass
Hidden Bake ElementNo
Number Of Oven Lights1
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Rack TypeStandard (Both)
Broiler LocationTop Center
Oven Control TypeElectronic Touch
Oven Control Knob TypePlastic
Oven Control LocationRear Control
Convection FunctionsNo
Configuration and Overview
Fuel TypeElectric
Controls
Knob TypePlastic
Electronic Display TypeLED
Knob ColorBlack
Description
Range TypeFreestanding
Energy
Annual Energy Usage Kwh523
Depth Closed Excluding Handles25.31"
Depth Closed Including Handles28.0"
Depth With Door Open 90 Degree46.69"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Carton Depth29.0"
Carton Height49.0"
Carton Width32.0"
Gross Weight156.0 lbs.
Height47.88"
Maximum Height47.88"
Capacity FT3 (cubic feet)5.3
Depth27.75"
Minimum Height46.88"
Width29.88"
