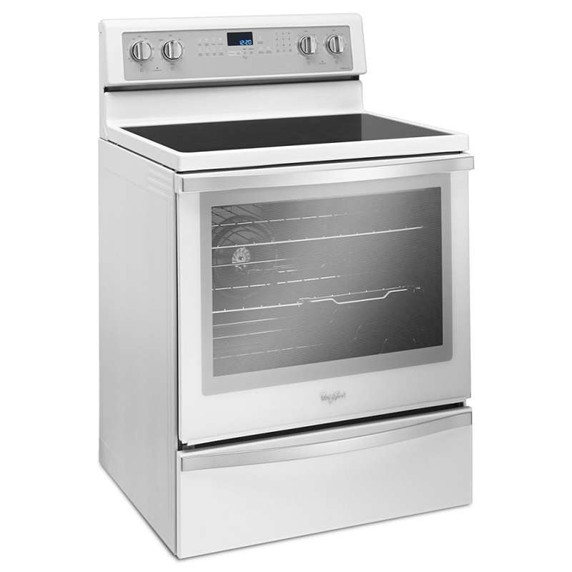

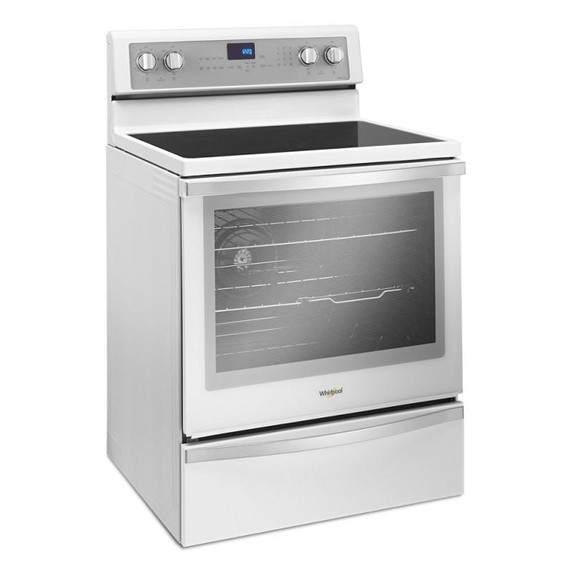

Whirlpool® 6.4 Cu. Ft. Freestanding Electric Range with True Convection YWFE745H0FH
Whirlpool Sizzling Summer Savings Event, June 1 – 21, 2023. Save $200 when you purchase 2 qualifying Whirlpool® Kitchen appliances. Save $300 when you purchase 3 or more.
Frozen Bake™ TechnologySkip preheating for favorites like pizza, lasagna, chicken nuggets, fries or pies so you can cook frozen foods faster.
True Convection CookingTrue convection cooks food faster by using a rear fan and third heating element to circulate hot air over, under, and around food.

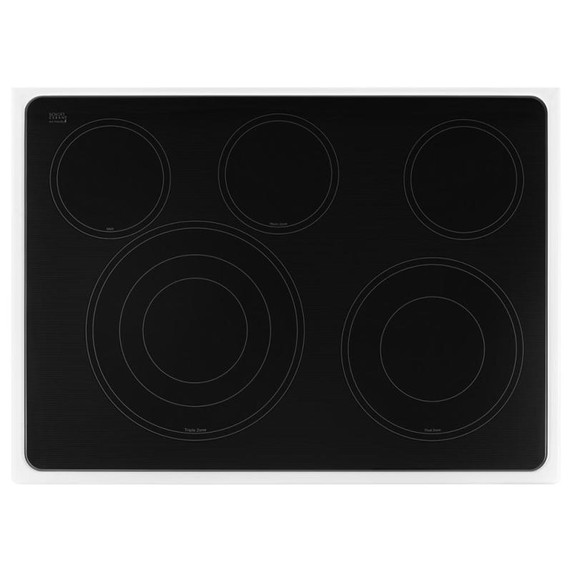

FlexHeat™ Triple Radiant ElementThe FlexHeat™ triple radiant element is like having three elements in one. A 6" inner ring is great for smaller pots and pans, while 9" and 12" outer rings make room to heat larger cookware.
Convection ConversionTake the guesswork out of convection cooking with Convection Conversion. It takes the normal cooking time and temperature and turns it into the faster convection equivalent for you.
AquaLift® Self-Clean technologyEnjoy odor-free cleaning without harsh chemicals in only 50 minutes.* AquaLift® self-cleaning technology uses only water and low heat to help remove baked-on foods from the bottom of the oven.*Based on average cleaning time of self-clean cycle with water and moderate soils.
Temperature SensorA built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.
Rapid PreheatSave time when you only need to bake on one rack. Rapid Preheat uses all of the elements and a rear fan to heat the oven quickly.
6.4 Cu. Ft. Capacity6.4 Cu. Ft. Capacity
Easy-Wipe Ceramic Glass CooktopEasy-Wipe Ceramic Glass Cooktop
Large Oven WindowLarge Oven Window
Max Capacity RackMax Capacity Rack
Hidden Bake ElementEasily clean your oven without an exposed bake element in the way.
Dishwasher-Safe KnobsDishwasher-Safe Knobs
Certifications
Prop 65Standard
ADA CompliantNo
ULYes
CULYes
Energy Rating (kWH/year)590
Exterior
Handle ColorStainless Steel
Handle TypeReach-Through Handle
Oven Window SizeLarge
Handle MaterialMetal
Door RemovableYes
Drawer TypeStorage Drawer
Door TypeMetal & Glass
Range Drawer TypeStorage Drawer
Electrical
Hz60
Amps40
Power Cord IncludedYes
Volts120/240
EndecaProps
ProductOutletCategoriesCooking
Cooktop Details
Cooktop Surface ColorBlack
Number of Cooking Element-Burners5
Cooktop Control TypeKnobs
Right Rear Element-Burner Power1200W
Right Rear Element-Burner TypeRadiant
Cooktop Control Knob ColorSilver/Chrome
Left Front Element-Burner Power3000W
Center Rear Element-Burner Power100W
Cooktop Control LocationBackguard
Cooktop Element StyleSmoothtop
Left Front Element-Burner TypeRadiant
Right Front Element-Burner TypeRadiant
Left Rear Element-Burner Power300W/1300W
Left Rear Element-Burner TypeRadiant Melt
Right Front Element-Burner Power3000W
Center Rear Element-Burner TypeRadiant
Right Rear Element-Burner Size6in.
Left Front Element-Burner Size12in./9in./6in.
Left Rear Element-Burner Size6in.
Center Rear Element-Burner Size6in.
Right Front Element-Burner Size9in./6in.
Configuration and Overview
Range TypeFreestanding
Details
Number of Oven Lights1
Oven Light TypeIncandescent
Convection Element TypeTrue
Number of Oven Racks3
Bake Element Power3600W
Number of Rack Guides7
Oven Cleaning TypeAquaLift® Self Clean
Broiler Element Power3600W
Oven Interior Height(IN,inches)21 3/8
Oven Rack Type2 Standard and 1 Max Capacity
Oven Control Knob TypePlastic
Convection Element Power (watts)925
Interior ColorGrey
Oven Control LocationBackguard
Oven Control TypeElectronic Touch
Hidden Bake ElementYes
Broiler LocationTop of Oven
Oven Light Switch LocationOven Control
Convection FunctionsBake,Broil,Roast
Automatic Shut-OffNo
Cooktop Surface MaterialGlass
Oven Automatic Shut-OffNo
Oven Interior Depth(IN,inches)20.750
Oven Interior Width(IN,inches)24.375
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Refinement
StyleRanges
Controls
Display ColorBlue
Knob ColorColor Coordinated
Knob TypeDishwasher-Safe Weighted
Electronic Display TypeVFD
Features
Power Outage CompatibleNo
Natural Gas ConvertibleNo
Heating Element On Indicator LightYes
Power On Indicator LightYes
Hot Surface Indicator LightYes
Automatic Convection Conversion Temperature AdjustYes
LP ConvertibleNo
SelectionControl Lock,Cook Time Indicator,Delay Start,Energy Save Mode,Frozen Bake,Keep Warm Setting,Rapid Preheat,Sabbath Mode
Refinements
WHR RangeBladed Knob,EZ-2-Lift™ Hinged Grates,FlexHeat™ Dual Element,FlexHeat™ Triple Radiant Element,Frozen Bake™ Technology,Sabbath Mode/Star-K Certification,Self-Cleaning,True Convection,Whirlpool Handle
Misc.
Accessory RelationshipsYes
Description
Fuel TypeElectric
Size (in.)30
Energy
Annual Energy Usage [kWh]590
Carton Depth29"
Carton Height48 3/4"
Carton Width32"
Cutout Height36"
Cutout Width30"
Depth27 3/4"
Height46 7/8"
Width29 7/8"
Depth Closed Excluding Handles25 5/16"
Depth With Door Open 90 Degree47 13/16"
Gross Weight187 Kg.
Maximum Height47 7/8"
Minimum Height46 7/8"
Net Weight0.0 Kg.
Capacity (cubic feet)6.40
